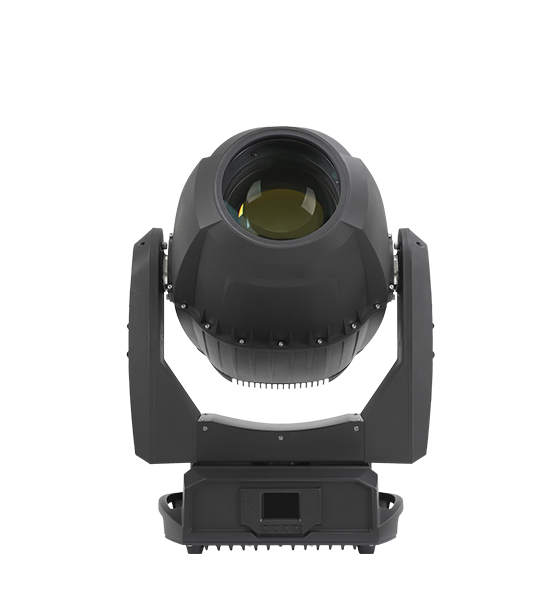

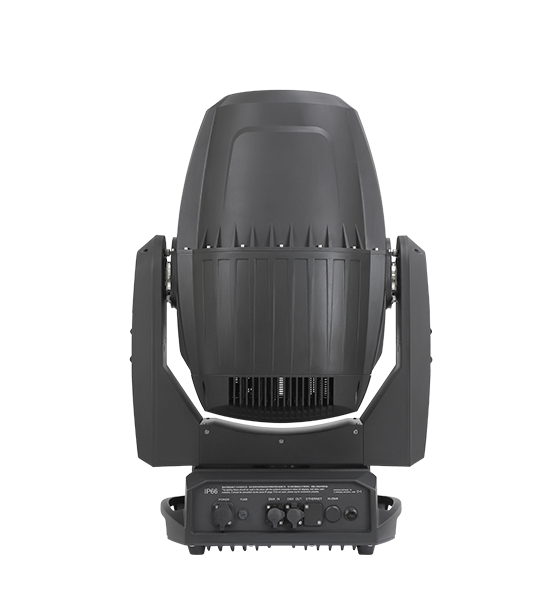

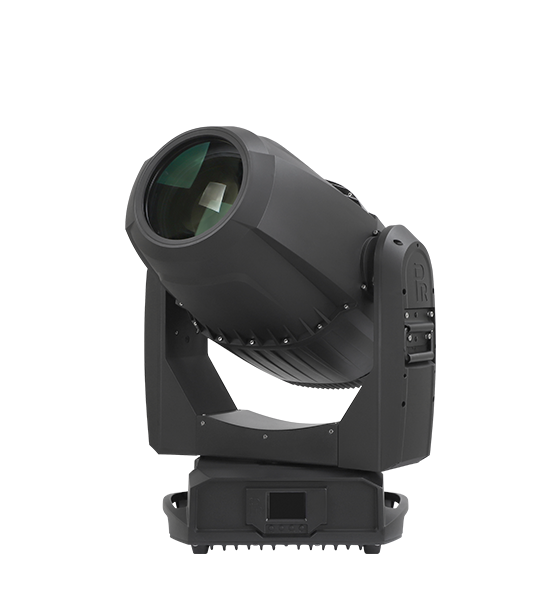

AQUA 480 Beam


AQUA 480 Beam is waterproof-IP65 and large aperture beam. It can produce sharp beam effect(beam angle is 3.1°). The central illumination is 182, 334 Lux at 20m and 81,037 Lux at 30m. It can provide a number of effects combined with CMY linear color mixing system, 18 fixed gobos and 7 rotating gobos. It is ideal for your outdoor entertainment, concert stadium and all kinds of activities.
Categories: ,


Input Voltages Light Angle
100-240V AC, 50/60Hz Beam angle: 3.1°
Power Consumption Other Functions
650W@220V Adjustable pan & tilt speed
LCD display screen
Light Source Fixture and lamp usage time display
USHIO PR 480(480W), (6,900±300K, 1,500 hrs) Modular structure for easy maintenance
DMX512 wireless receiver
Strobe DMX512 wireless transmitter(optional)
Double shutter blades, 0.3-25 F.P.S
Dimmer Housing: cast aluminum and high temperature UV resistant ABS, IP65
0-100% linearly dimming Ambient temperature: maximum 42°C
Prism Weight
Two individual prisms(standard: 8-facets and 16-facets) Net weight: 38Kg
Bi-directionally rotating at variable speeds
Optional: 3-facet, 16-facet, gradient and linear prisms Packaging
Standard: carton 745x665x600(mm)
Frost Optional: flight case 620x570x780(mm)
One frost filter
Focus G clamp, 2 pcs
DMX linear focus 5 Pins XLR connector, 1 set
Safety cord, 1 pc
Head Movement Power cord, 1 pc
Pan 540°, tilt 270° with auto position correction Optional: Ω clamp, 2 pcs
International DMX512, 5 pins interface
RDM control protocol
Short mode 19 channels, standard mode 26 channels and extended mode 29 channels
Self-test mode
