LS 150/90 Water

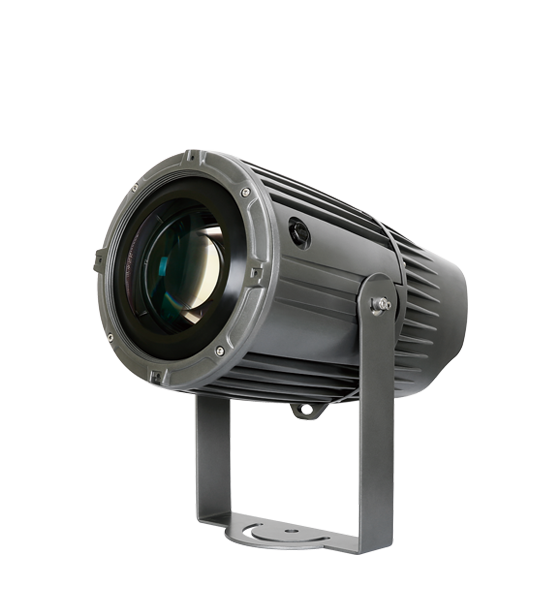

LS 150/90 Water is a high temperature resistant and high-brightness luminaire, equipped with a 150W(optional 90W) LED lamp. It features one color wheel and two individual rotating water effect wheels, combined with 45° and 25° light angle, super-fast strobe, rating IP65, etc. It’s widely applied in urban buildings lighting, landscape lighting and other multi-scale of locations.


Input Voltages Other Functions
100V~240V AC,50/60Hz LCD panel
Over temperature protection
Power Consumption Fast and convenient software upgrade via DMX512 interface
LS 150 Water(PR-6810):300W@230V Built in NTC temperature detecting function, If LED lamp is over heat
LS 90 Water(PR-6809): 130W@230V its power will be decreased intelligently
Light Source Physical
LS 150 Water(PR-6810):150W LED white(7,500k), 50,000 hrs Housing: high-intensity die-casting aluminum, IP65
LS 90 Water(PR-6809): 90W LED white(7,500k), 50,000 hrs Ambient working temperature: -20°C~45°C
Strobe Weight
Electronic strobe, 0-25 F.P.S(preset pulse strobe effect) Net weight: 8.5kg
Dimmer Packaging
0-100% linear adjustment Standard: carton 690x680x480(mm)
Optional: flight case 940x465x585(mm), 6 in 1
2 Water effect wheels, independently and bi-directionally continually rotating Accessories
C clamp, 1 pc
Light Angle Signal adapter cord, 2 pcs
Field angle: 45° Power cord, 1 pc
Safety cord, 1 pc
Control Optional: transparent cover+seal+screws x6, 1set
International DMX512, 3 pins and 5 pins interface
Master-slave synchronized mode, stand-alone mode, preset mode,
test mode, and single scene mode
DMX mode, preset memories and user memory mode
