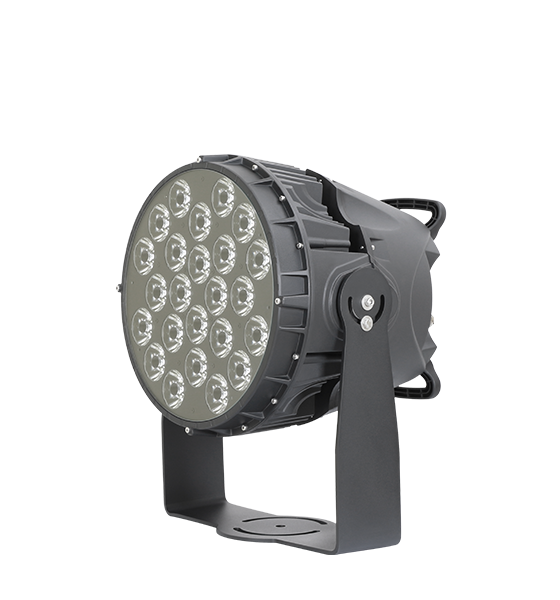

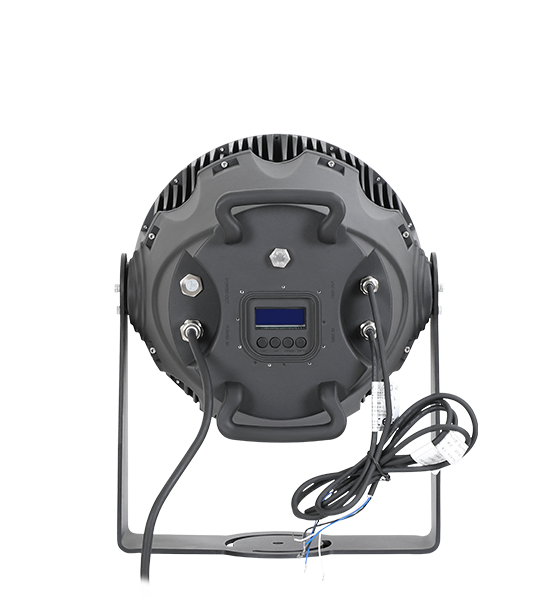

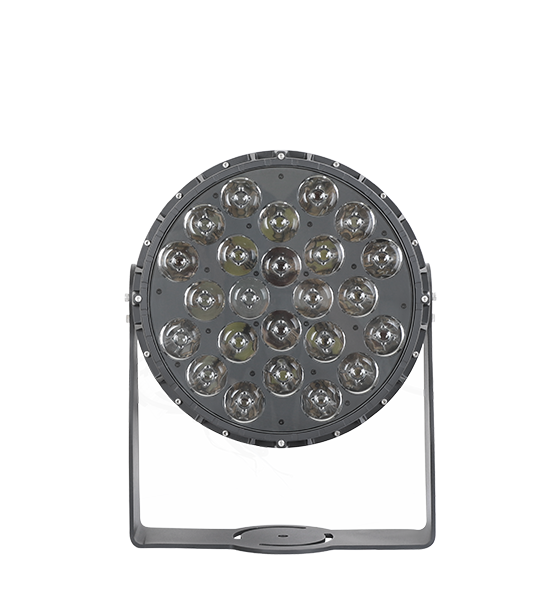

LS PAR 1524


The unit is a high temperature resistant and high-brightness luminaire, equipped with PHILIPS 24 pcs 15W LEDs(RGBW 4 in 1) engine. It features color mixing system, combined with 16° light angle(optional: 22°, 30°), super-fast strobe, rating IP65, etc. It’s widely applied in urban buildings lighting, landscape lighting and other multi-scale of locations.


Input Voltages Control
100V~240V AC,50/60Hz International DMX512, 3 pins interface
Short mode 7 channels, standard mode 10 channels
Power Consumption Master-slave mode, stand-alone mode
Light Source Housing: high-intensity die-casting aluminum, IP65
PHILIPS 24x15W LEDs(RGBW 4 in 1), 50,000 hrs Ambient working temperature: -20°C~45°C
Strobe Weight
Electronic strobe, 1-25 F.P.S Net weight: 20kg
Dimmer Packaging
0-100% linear adjustment Standard: carton 550x480x470(mm)
Optional: flight case
Light Angle
Beam angle (1/2 peak) θ1/2: 16°(optional: 22° and 30°) Accessories
C clamp, 1 pc
Other Functions Signal adapter cord, 2 pcs
LCD panel Power cord, 1 pc
Over temperature protection Safety cord, 1 pc
Fast and convenient software upgrade via DMX512 interface Optional: transparent cover+ seal+ screws x6, 1set
Built in NTC temperature detecting function, If LED lamp is over heat
its power will be decreased intelligently
