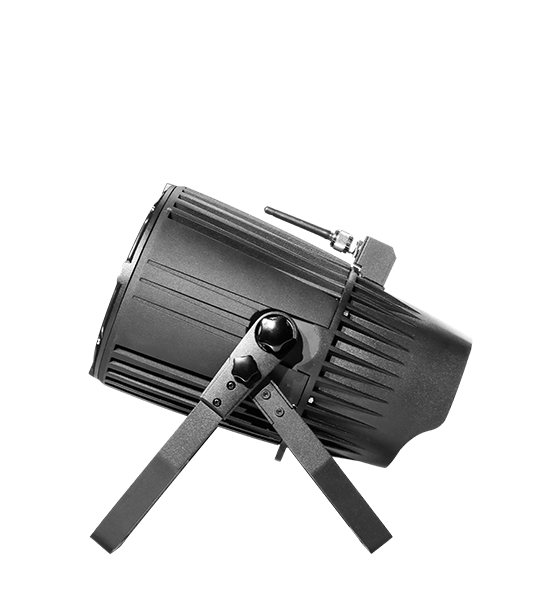

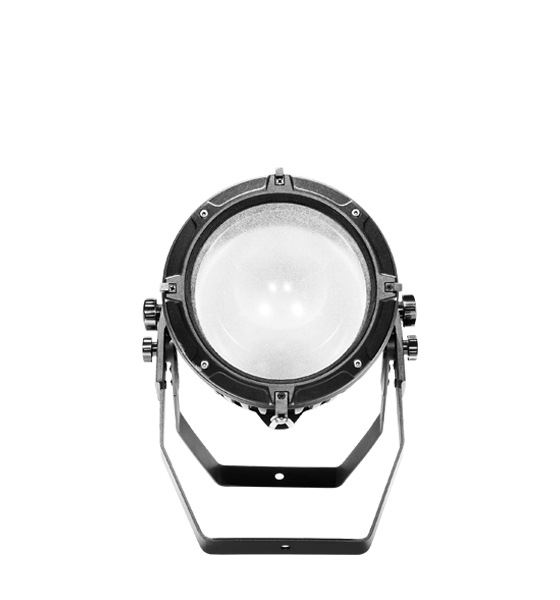

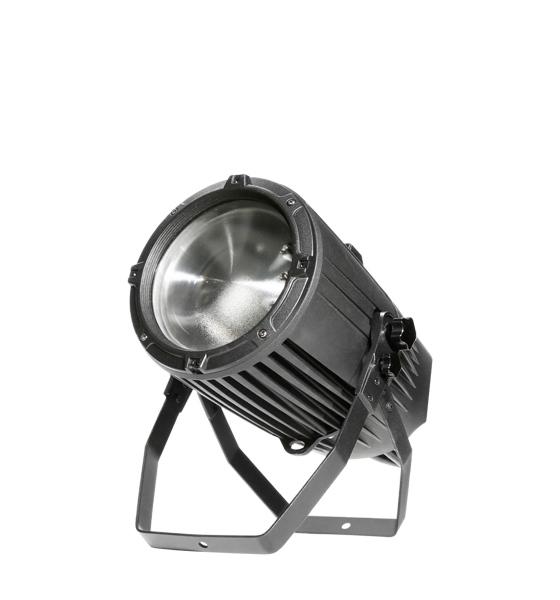

XPAR 150 Zoom


The XPAR 150 Zoom is an exceptionally compact and lightweight lighting fixture designed for extreme outdoor environment, such as building facades, landscaping, and so on. It features with multichip COB LED and linear zoom, ideal for applications requiring superb color mixing (RGBW) or high quality white light.


Input Voltages Light Angle
100-240V AC, 50/60Hz Field angle(1/10 peak): 22°~55°
Power Consumption Other Functions
200W@220V LED lamp board temperature and fixture time available in the menus
DMX channel mode and settings displayed
Light Source LCD and inverted display
1 COB 150W LED (RGBW 4 in 1), 50,000 hrs Display backlight automatically shut off after delay
Parameters like operation mode and etc. transmitted under synchronization
Strobe DMX512 wireless receiver
Electronic strobe, 0.5-33 F.P.S DMX512 wireless transmitter(optional)
Dimmer Weight
0-100% linear adjustment Net weight: 7.5kg
Control Packaging
International DMX512, 3 pins(optional 5 pins) interface Standard: carton 700x690x480(mm)
Standard mode 7 channels and extended mode 12 channels Optional: flight case 440x465x585(mm), 6 in 1
Master-slave mode
DMX control mode, user memory mode, preset memory mode Accessories
Test mode C clamp, 1 pc
Safety cord, 1 pc
Physical Signal adapter cable, 2 pcs
Housing: high intensity die-casting alloy, IP67 Power adapter cable, 1 pc
Ambient working temperature: -20°C~40°C Optional: barndoor, 1 set
