XR 380 Beam

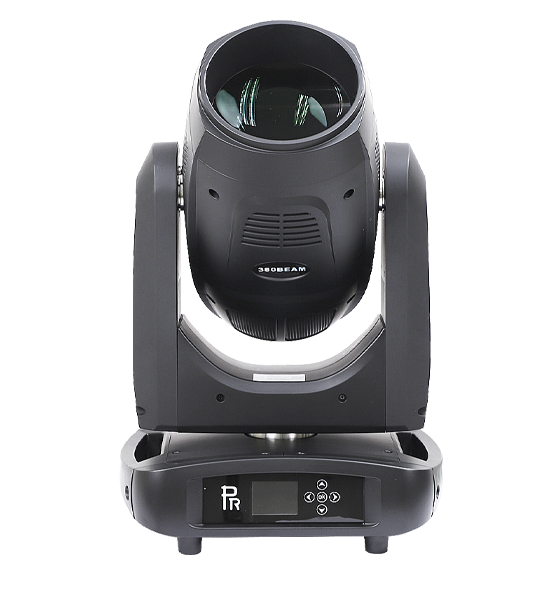

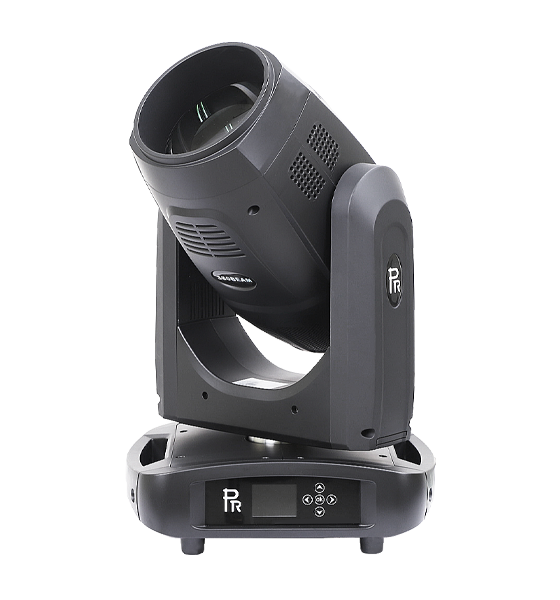

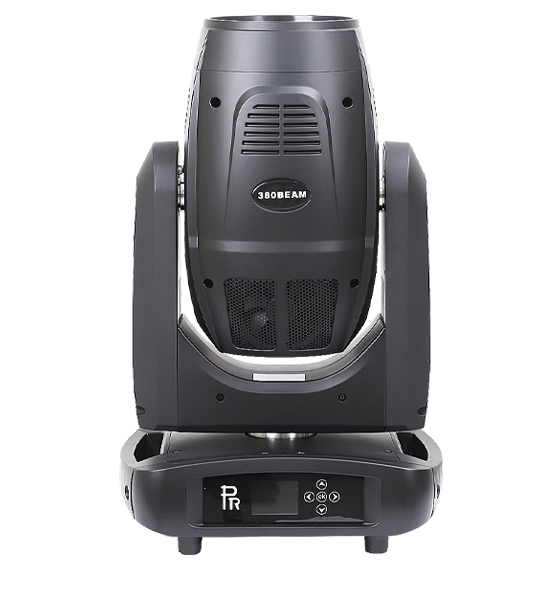

XR 380 Beam is an extremely bright moving head Beam lighting fixture. It uses Philips MSD Platinum 300S Flex lamp. It has high efficiency and illuminance, fat beam, compact size, light weight and agile movement, low noise , good cooling, stable performance and etc.. It has multiple fixed beam angles between 0°and 2°. With linear Dimmer, a color wheel(14colors), a static gobo wheel(17gobos) , an 8-facet circular prism , a 16-facet circular prism, a linear frost filter and etc.

Categories: ,


Input Voltage Beam Angle
200V~240V AC,50/60Hz 0°~ 2°
Input Power Control
600W@230V International standard DMX 512 protocol, 5-pin interface
Power factor PF>0.90 14channels in short mode and 16channels in standard mode
Light Source Housing
MSD Platinum 300S Flex (7800K,6000hrs) High temperature and anti-UV ABS and aluminum , IP20
Colors Net Weight
1color wheel: 14colors+ Open 17Kg
Fixed Gobo Wheel Packaging
1 fixed gobo wheel: 17gobos+open, gobo diameter=6mm, its thickness=0.8mm Standard: carton 440x360x710(mm)
Optional: flight case 760x450x810(mm), 2 in 1
1 8-facet prism and 1 16-facet prism Operation Temperature
bi-directional rotation from slow to fast , both can be overlapped Ambient temperature at maximum:45°C
Focus Accessories
DMX linear focus Safety cord1   Pc
Clamp2   Pc
Dimmer /Strobe Foldable clamp    2   Pc   Optional
Strobe at variable speeds(15 F.P.S at maximum) User manual0    1    Pc
0-100% linear dimmer
Head Movement
Pan 540º, Tilt 270º with 16 bit control
