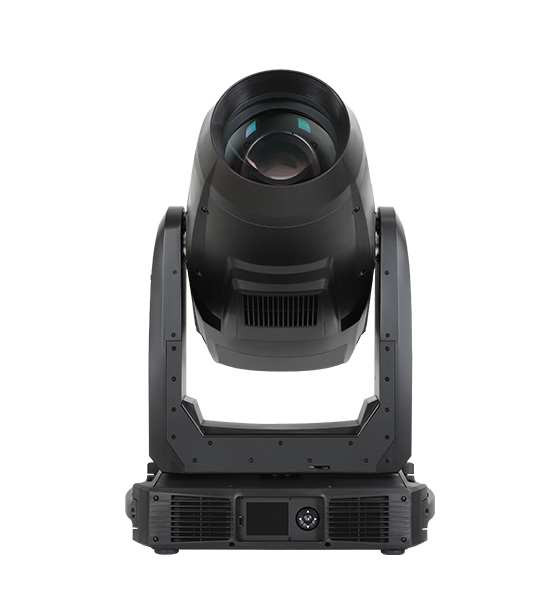

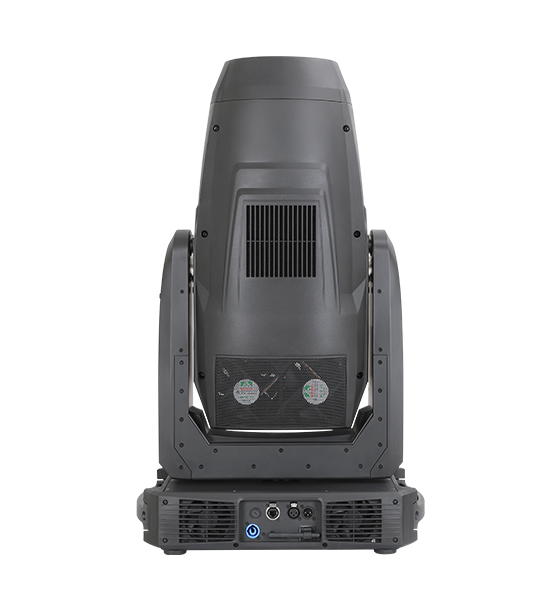

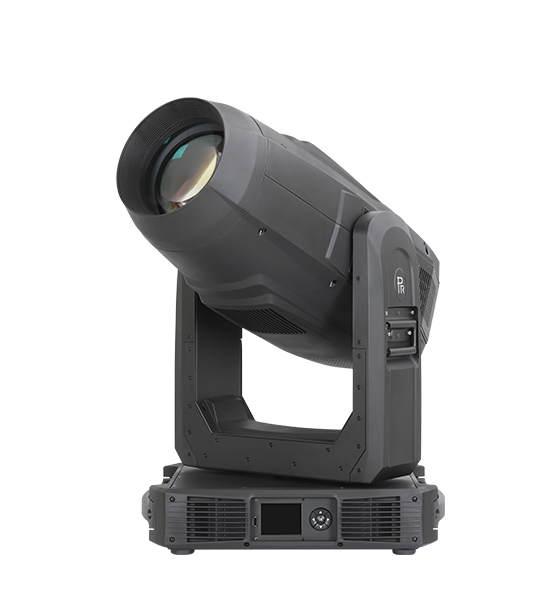

XRLED 3000-W Framing


The XRLED 3000-W Framing is the latest advanced 1200W white LED moving head. In addition to its complete range of spotlight effects, it has an exclusive framing system with endless rotating framing module, designed and patented by PR. It is extremely bright, very powerful and highly efficient for any projects.

Categories: ,


Input Voltages Fan Mode
100V-240V AC,50/60Hz Standard mode and theater modes.  Theater mode is quiet mode
Input Power Fixture Types
1550W@220V Including moving head light, fixed-focus profile light, zoom profile light
1700W@100V Moving head light with beam angle range(6-54°)
Power factor: PF>0.95 Fixed focus profile light with beam angle options including 6°,10°,19°,26°,36°,50°
Zoom profile light with beam angle ranges including 6-15°,15-35°,35-54°
Light Sources (Note: Auto quiet theater mode for fixed focus profile light and zoom profile light)
1200W white LED module (6900K), CRI: Ra≥95, R9≥95
CRI Mode
Running at high CRI mode via DMX channel to ensure high CRI optical effect
Linear CTO system(0-100%, 1800K-6500K) Control
International standard DMX512 signal and RDM function
Effect Wheel 47channels in short mode, 52channels in standard mode,67channel in extended mode
1 animation effect wheel, bi-directional rotation with varied speeds Art Net protocol , sCAN protocol(optional), DMX512 wireless control
Iris Control Interface
Linear iris 5-100% with macros DMX512 ports(5-pin)
Ethernet port RJ45
1pc of 4-facet circular prism+1 pc of linear prism Other Functions
bi-directional rotation with varied speeds with indexing function Pan and Tilt speeds adjustable
Pan and Tilt swappable and invertible
Frost High precision magnet sensor for positioning
2 frost filters: 1 heavy frost filter + 1 light frost filter  (0-100% linear ) 3.2-inch touch color screen
Chinese and English menus
Beam Angle Screen automatic lock –up while standby
Linear zoom 6°~  54°with 16 bit precision Error diagnostic system with sensors
Smart fan cooling system
Focus Display of fixture hours and software versions
Linear focus with auto-focus function Modular construction for easy maintenance
Isolated input signals
Dimmer Firmware update via DMX cable or USB port
Linear electronic dimmer 0-100% with 16 bit control
3 dimmer speeds IP Rating
4 dimmer gamma curves IP20
Dimmer frequency(1.2K-25K)
Operation Temperature
Strobe 45℃ at Maximum
Electronic strobe, 0.3~25 F.P.S
Head Movement Net weight 45Kg
Pan 540º, Tilt 270º with auto position correction and 16 bit control
Advanced Macros G clamp2   Pcs
Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K XLR connector    1   Set    Male and female
Standard color macros: 89 color options Safety cord2   Pcs
User manual1   Pc
Brightness Calibration Function Ω clamp2   Pcs   Optional
With brightness calibration function to calibrate initial brightness
for a single fixture or multiple ones and store brightness
values into the fixtures
