XRLED 3500-W WashFraming

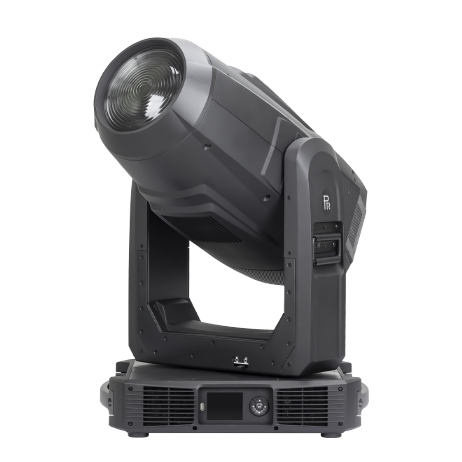

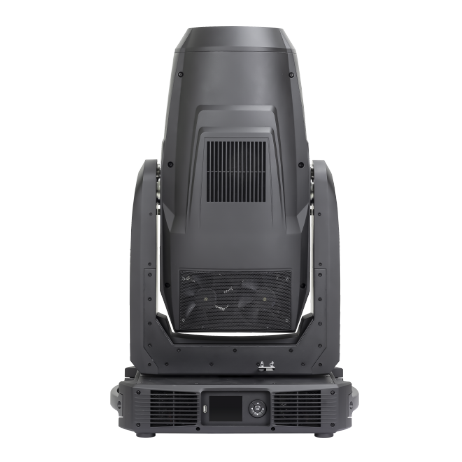

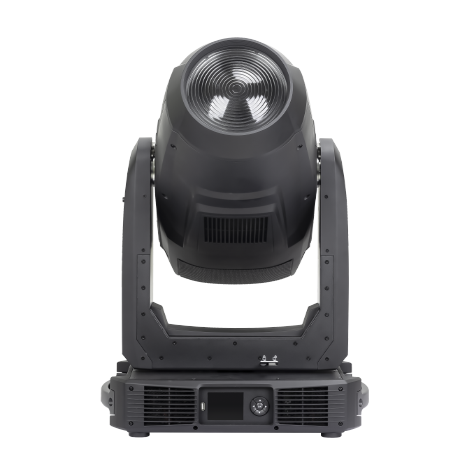

XRLED 3500-W Wash/Framing is a moving head light using 1500 W white LED engine. It has high-quality and highly bright light with both Ra and R9 above 95 for very good color rendition. The continually rotating framing module with our own Intellectual Property can easily change framed graphics’ sizes and shapes .It has brightness uniformity calibration, standard LEE color macros, linear color temperature(1800-6500K), multiple dimmer modes, very low noise and etc., realizing more professional and fantastic stage effects.
Categories: ,


Input voltage a single fixture or multiple ones and store brightness
100V-240V AC,50/60Hz values into the fixtures
Input power CRI mode
1900W @ 220V

Running at high CRI mode via DMX channel to ensure high CRI optical effect

Light sources Control
1500W white LED module (6500K)

International standard DMX512 signal and RDM function

CRI : Ra≥95、R9≥95, Lamp Life : ≥20000hrs

31channels in short mode, 35channels in standard mode,49channel in extended mode


DMX512 wireless control


Art Net protocol(optional)


Linear CTO system(0-100%, 1800K-6500K)

sACN protocol(optional)
Beam angle Control Interface

1/2θ(peak):7°~40°, with 16 bit precision


DMX512 ports(5-pin)

1/10θ(peak):12°~60°, with 16 bit precision

Ethernet port RJ45

Focus Other functions

DMX linear focus

Pan and Tilt speeds adjustable,Pan and Tilt swappable and invertible
High precision magnet sensor for positioning
Dimmer 3.2-inch touch color screen, Chinese and English menus

Linear electronic dimmer 0-100% with 16 bit control

Screen automatic lock –up while standby

3 dimmer speeds

Error diagnostic system with sensors

4 dimmer gamma curves

Smart fan cooling system

Dimmer frequency(1.2K-25K) adjustable, suitable for 4K high speed video camera

Display of fixture hours and software versions
Modular construction for easy maintenance
Strobe Isolated input signals

Electronic strobe, 0.3~25 F.P.S, optional synchronized or non-synchronized strobe

Firmware update via DMX cable
Head movement IP rating

Pan 540º, Tilt 270º with auto position correction and 16 bit control

Advanced macros Operation temperature

Color temperature macros: optional 2700K,3000K,3500K,4000K,4500K,5000K,5700K

Ambient temperature at maximum:45°C
Standard color macros: 89 color options based on standard color chart
Fan mode Weight

Standard mode and theater modes.Theater mode is quiet mode

Net weight 43.5 KG
Brightness calibration function

With brightness calibration function to calibrate initial brightness for
